StageOne V2 + StageTwo bundle

The Version 2 includes a more effective LED UV filter (Optional) which never needs its bulb changing, is 40mm lower and can operate interchangeably from either 12v or 230v with the adapters provided. Also features more powerful pump and improved flow. Stock limited

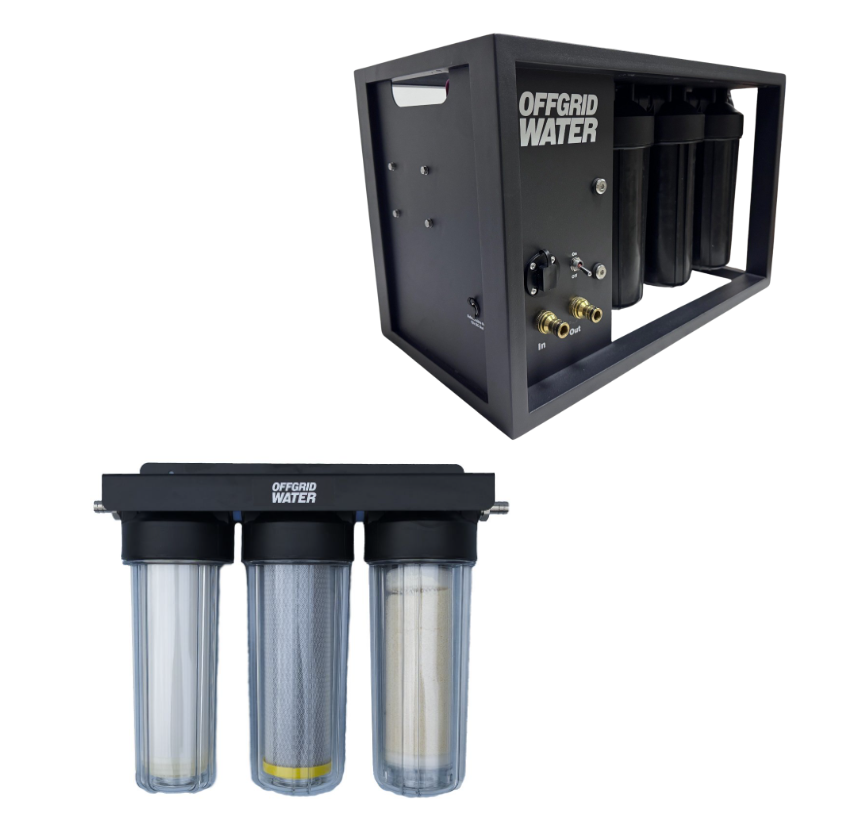

The StageOne V2 and StageTwo bundle combine so that you fill your water tank from a canal or river using the StageOne and then post chlorination, filtering it further with the StageTwo unit which can be placed after your onboard water pump. This gets it to drinking water quality* (we advise testing). If you want to guarantee peace of mind, we recommend the StageOne + StageTwo + FinalStage RO bundle available here.

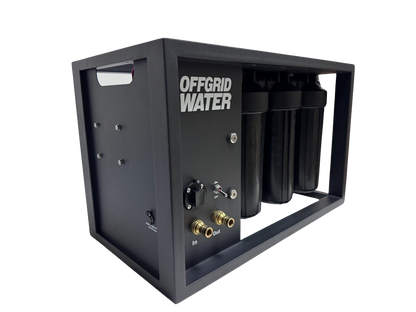

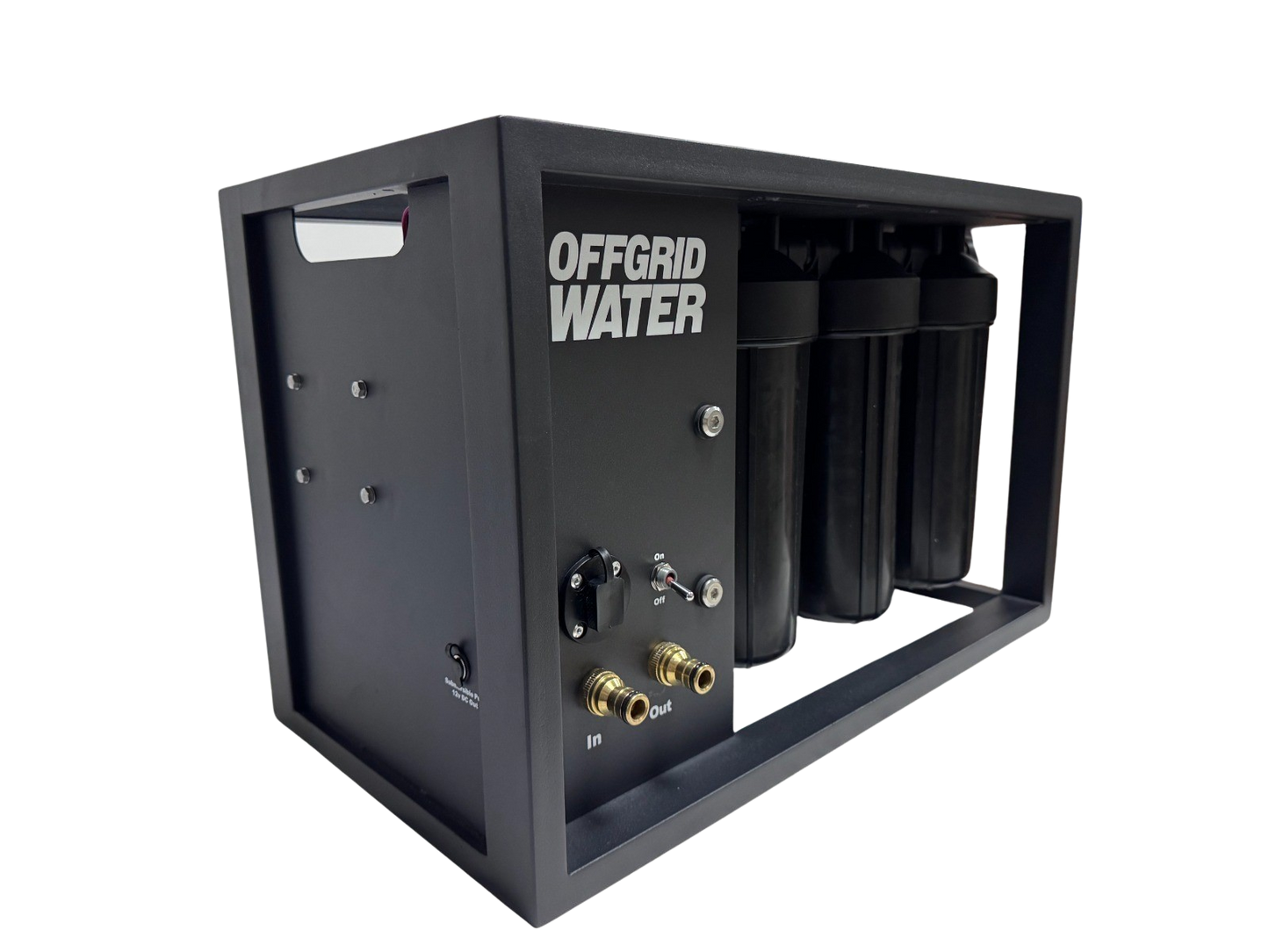

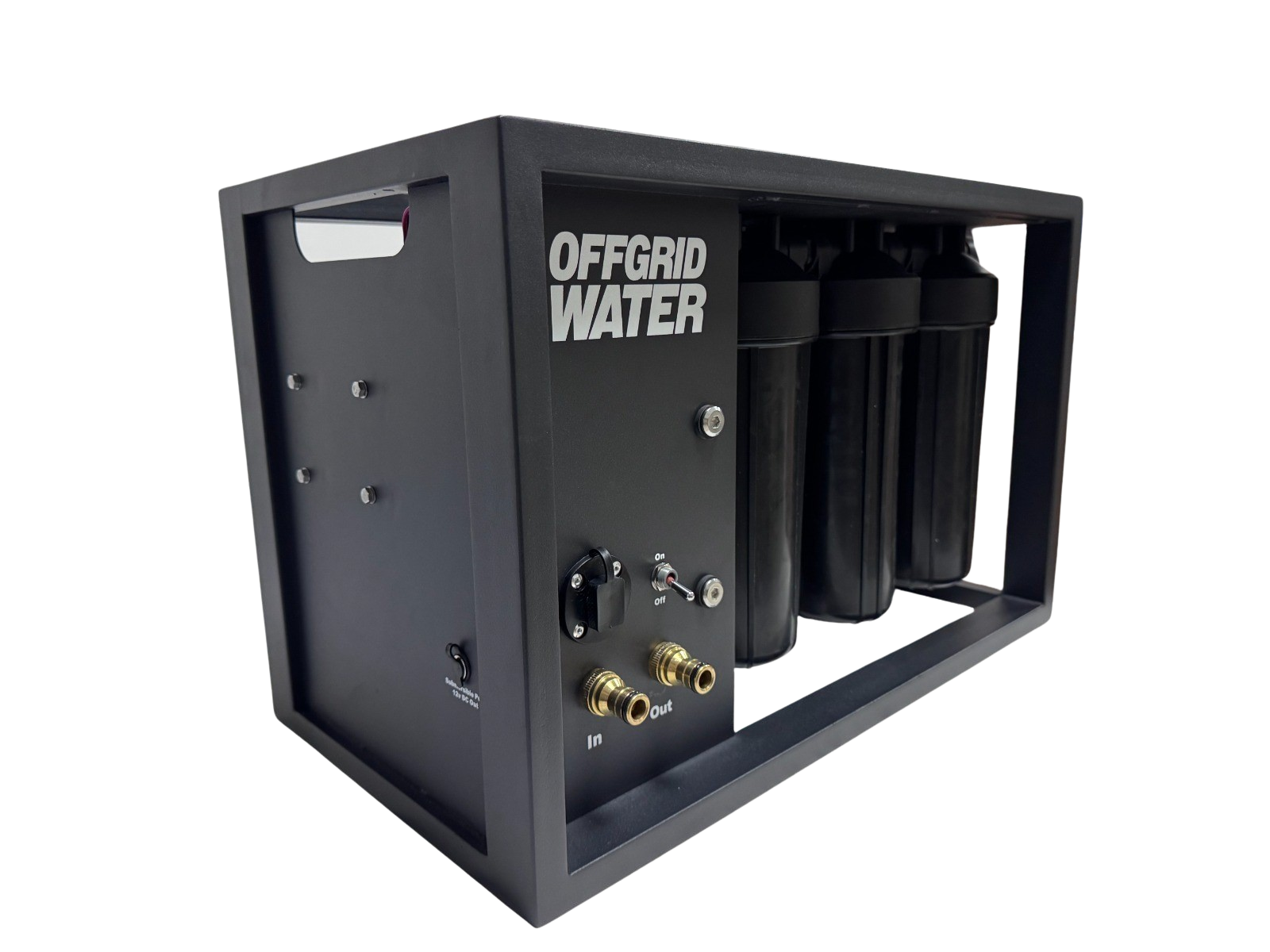

StageOne

The Offgrid StageOne is built for tough environments, it's got a powerful pump combined with a 7-stage filtration process with UV sterilisation. It's designed to filter dirty source water, whether canals, rivers, lakes or rain water. Durable and weather-resistant, this unit is ideal for all sorts of off grid applications, effectively removing contaminants, sediments, and microorganisms.

The filtered water is then suitable for washing and domestic purposes. Depending on the quality of the source water, we can configure your system to produce water that is safe to drink (by including ultrafiltration for instance).

It’s plug and play and comes with all the hose, fittings and clips necessary to get started filtering water within 5 minutes of opening the box!

The Offgrid StageOne does not filter salt or brackish water (yet).

Specification

• Source water purified: Canal / River / Rain / Lakes
• Power: 200 watts with either 12v or 230v adapters
• Dimensions: W64cm x D31 x H40
• Weight: 14kg (dry) / 19kg (wet)
• Weatherproofing: Rain and cold but protect from frost
• Flow rate: 10-12 litres per minute  (depending on filter setup and height)
• Filters: 6 x 10" x 2.5" standard filters (type varies depending on use)
• LED UV: Compact unit which never needs its bulb changing (Optional)
• Filter change frequency: Variable but around one every 1500-2000 litres
• Running costs: £70-£90 per year for dirty canal water (full time canal boat living)
• Equipment: Primary strainer, high pressure couplings, hose clips, set of filters and instructions
• Assembled in England
• Warranty: 2 Years

StageTwo (plumbed in after your pump and/or accumulator)

The Offgrid StageTwo is built for filtering water that has already been purified by the Offgrid StageOne unit, mains water or stagnant tank water that you don’t trust. It combines de-ionisation, ultra filtration and carbon filtration to remove any contaminants or microorganisms that may still be present in your water to get it to drinking water standards. Water softening can also be added to protect appliances from limescale or make for a better shower experience!

Specification

• Source water purified: Water purified by StageOne or similar / stagnant tank water or mains
• Power use: 0 watts
• Dimensions: W35cm x D15 x H35
• Weight: 4kg (dry) / 7kg (wet)
• Weatherproofing: Indoor or outdoor use (protect from direct sunlight)
• Flow rate: Up to 16 litres per minute
• Filters: 3 x 10" x 2.5" standard filters (type varies depending on use)
• Filter change frequency: 4-8 months
• Running costs: £30-40 per year
• Warranty: 2 Years

Note that we cannot guarantee output quality of water as there are many variables out of our control such as differing contaminants in source water and maintenance of the system. High soluble iron content for instance may need a specific iron filter. What we do know is that for rainwater, canal and river water as well as many other water sources, this system gets them to drinking water standards. We recommend testing periodically if being used to drink especially in very dirty areas. If in doubt, you should purchase a Reverse Osmosis system too.
