Offgrid StageOne V2 wall-mounted

Note that you can expect delivery of this unit end of January 2025 due to unforecast demand and supply shortages! Stock is limited so secure your order soon!

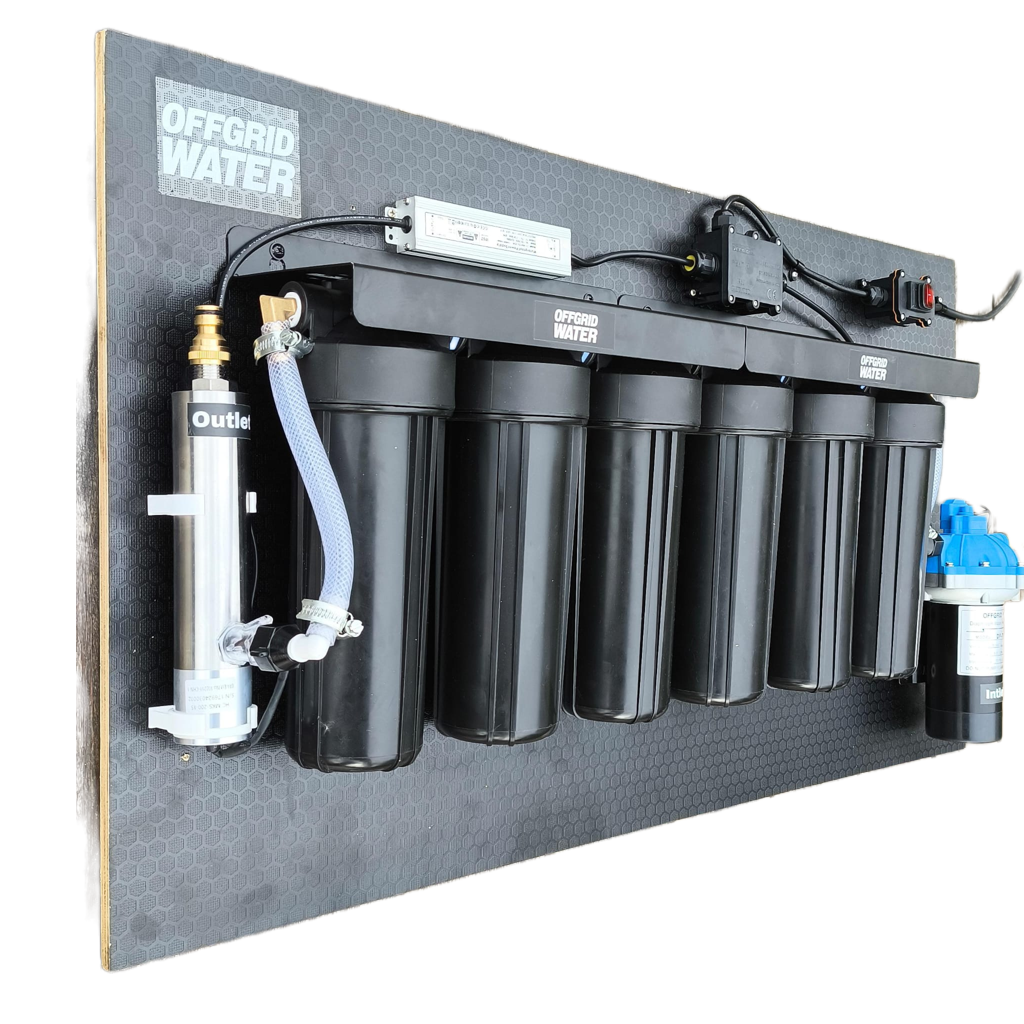

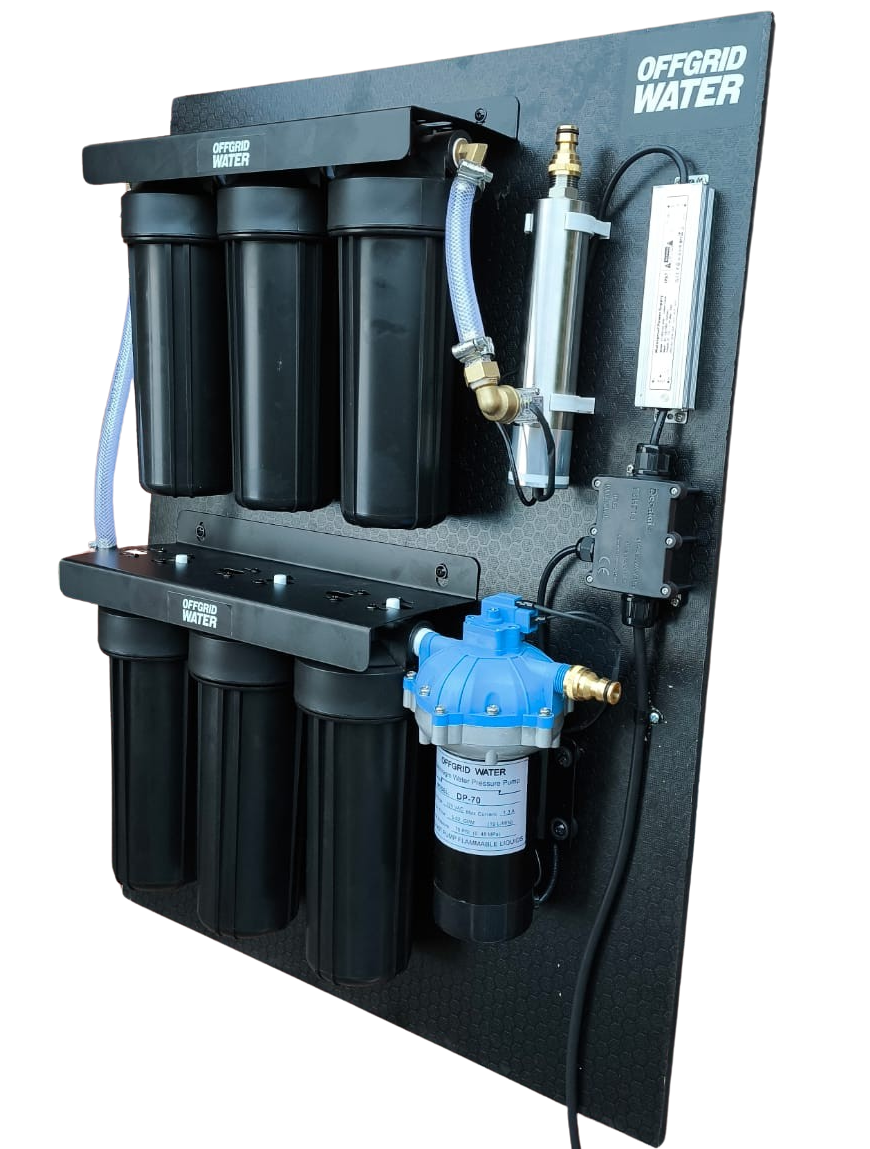

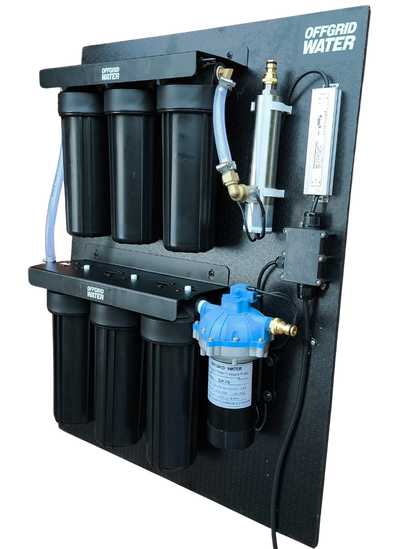

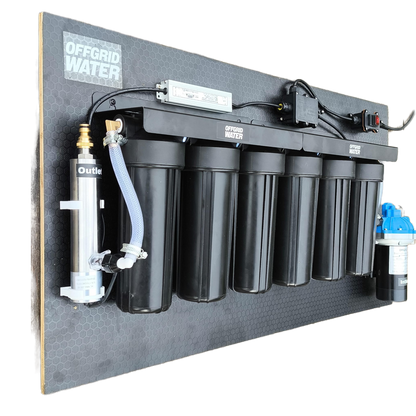

The Offgrid StageOne wall-mounted unit is built for tough environments, offering a 7-stage filtration process with UV sterilisation (Optional). It's designed to filter dirty source water, whether canals, rivers, lakes or rain water. Durable and weather-resistant, this unit is ideal for all sorts of off grid applications, effectively removing contaminants, sediments, and microorganisms.

The filtered water is then suitable for washing and domestic purposes. Depending on the quality of the source water, we can configure your system to produce water that is safe to drink (by including ultrafiltration for instance).

It requires minimal installation and comes with hose, fittings and clips necessary to get started filtering water. We recommend placing this outside as changing filters can get a bit messy. Custom aluminium cupboards are available - please message us for details!

The Offgrid StageOne does not filter salt or brackish water (yet).

Specification

• Source water purified: Canal / River / Rain / Lakes (contact us so we can understand your needs)
• Power: 200 watts at 230v AC (UK 3 pin plug) or 12v if requested
• Dimensions: (Portrait orientation) W60cm x D15 x H80 or (Landscape Orientation) W100cm x D15 x H50
• Weight: 15kg (dry) / 20kg (wet)
• Flow rate: 6-10 litres per minute  (depending on filter setup and height)
• Filters: 6 x 10" x 2.5" standard filters (type varies depending on use)
• UV: LED UV rated to 15litres per minute (Optional)
• Filter change frequency: Variable but around one every 1500-2000 litres.
• Running costs: £70-£90 per year for dirty canal water (full time canal boat living)
• Equipment: Primary strainer, high pressure couplings, hose clips, set of filters and instructions..
• Warranty: 2 Years

Note that we cannot guarantee output quality of water as there are many variables out of our control such as differing contaminants in source water and maintenance of the system. High soluble iron content for instance may need a specific iron filter. What we do know is that for rainwater and river water as well as many other water sources, this system gets them to drinking water standards. We recommend conducting laboratory tests (which we can supply).

Please note that this is a pre order and will be assembled and built by the end of January.
