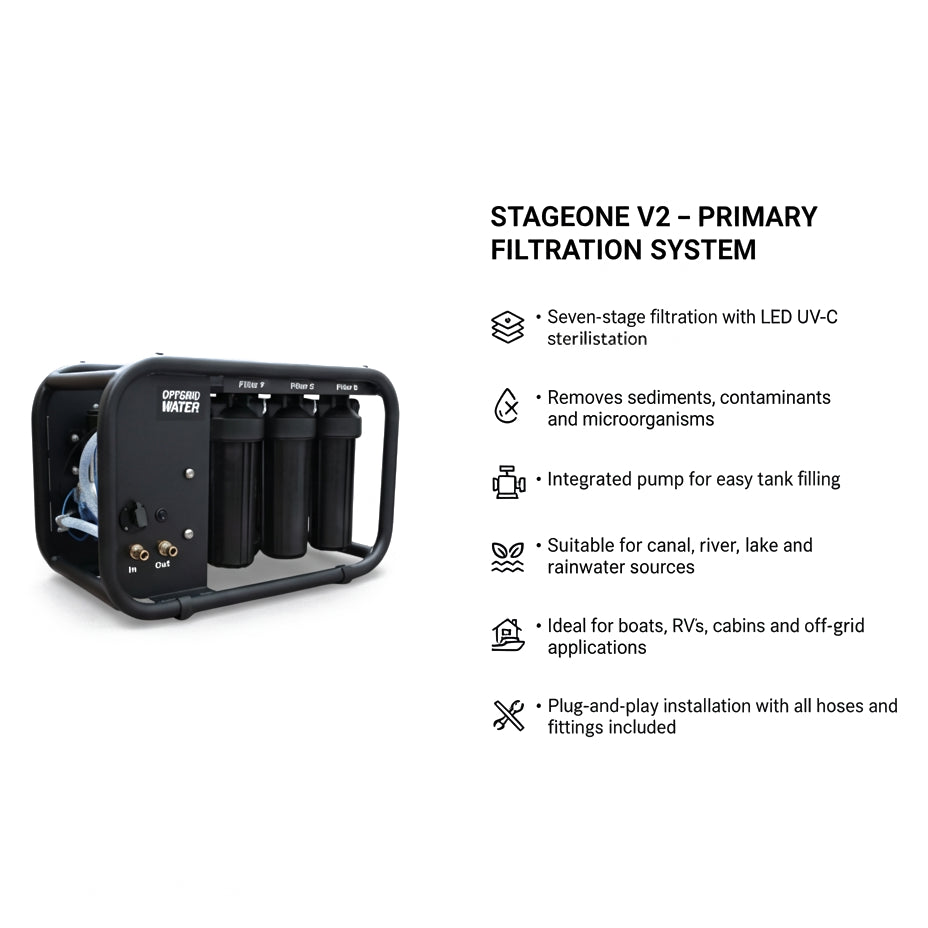

Offgrid StageOne V2

The Offgrid StageOne is built for tough environments, offering a 7-stage filtration process with LED UV sterilisation. It's designed to filter dirty source water, whether canals, rivers, lakes or rain water. Durable and weather-resistant, this unit is ideal for all sorts of off grid applications, effectively removing contaminants, sediments, and microorganisms.

The filtered water is then suitable for washing and domestic purposes. Depending on the quality of the source water, we can configure your system to produce water that is safe to drink (by including ultrafiltration for instance).

It’s plug and play and comes with all the hose, fittings and clips necessary to get started filtering water within 5 minutes of opening the box!

The Offgrid StageOne does not filter salt or brackish water (yet).

Specification

• Source water purified: Canal / River / Rain / Lakes
• Power: 200 watts with either 12v or 230v adapters
• Dimensions: W64cm x D31 x H40
• Weight: 14kg (dry) / 19kg (wet)
• Weatherproofing: Rain and cold but protect from frost
• Flow rate: 10-12 litres per minute  (depending on filter setup and height)
• Filters: 6 x 10" x 2.5" standard filters (type varies depending on use)
• LED UV: Compact unit which never needs its bulb changing (Optional)
• Filter change frequency: Variable but around one every 1500-2000 litres
• Running costs: £70-£90 per year for dirty canal water (full time canal boat living)
• Equipment: Primary strainer, high pressure couplings, hose clips, set of filters and instructions
• Assembled in England
• Warranty: 2 Years

Note that we cannot guarantee output quality of water as there are many variables out of our control such as differing contaminants in source water and maintenance of the system. High soluble iron content for instance may need a specific iron filter. What we do know is that for rainwater and river water as well as many other water sources, this system gets them to drinking water standards.
